The LVOBO BO-UCH800F is a 600 W probe sonicator designed for laboratory cell disruption, homogenization, dispersion and sample preparation. It supports processing volumes of 5–800 mL with suitable probe configurations, including a standard Φ10 mm titanium alloy probe. The split-type system features touchscreen control, an enclosed sonication chamber and a motorized sample lift. With adjustable ultrasonic power, continuous and pulse operation, and temperature monitoring with alarm, the BO-UCH800F provides flexible control for laboratory ultrasonic processing.
Số mục :
BO-UCH800FĐặt hàng (MOQ) :
1Giá :
$1393Nguồn gốc sản phẩm :
ChinaCảng vận chuyển :
XiaMenThời gian dẫn :
7DaysCân nặng :
17KGSự chi trả :
T/TAdjust ultrasonic power from 0–100% to suit the sample and processing task.
Process laboratory samples within this range using a suitable probe configuration selected for the sample and vessel.

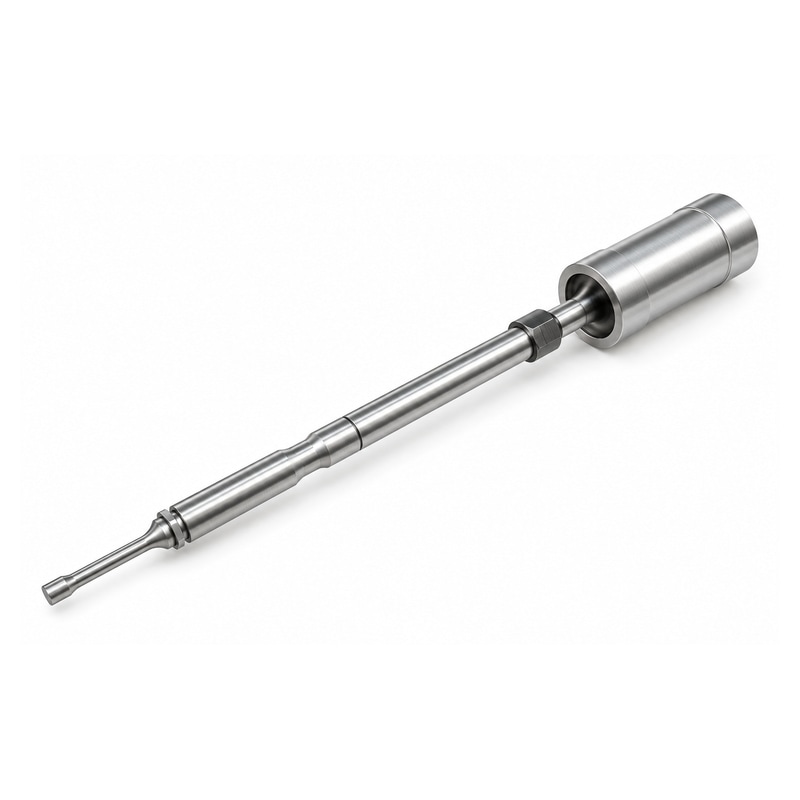

A titanium alloy probe is supplied as standard, with multiple optional diameters for different laboratory requirements.
Combine touchscreen control, a motorized sample lift, an acoustic enclosure, Temperature Monitoring & Over-Temperature Alarm, and program / recipe memory.
Select a probe according to sample volume, vessel geometry, sample characteristics and intended application.
| Parameter | Specification |
|---|---|
| Brand | LVOBO |
| Model | BO-UCH800F |
| Ultrasonic Power | 600 W |
| Processing Range | 5–800 mL |
| Standard Probe | Φ10 mm |
| Optional Probes | Φ3 / Φ6 / Φ8 / Φ10 / Φ12 / Φ16 mm |
| Probe Material | Titanium Alloy |
| Ultrasonic Frequency | 20–25 kHz |
| Power Adjustment | 0–100% |
| Total Working Time | 0–999 min |
| Output Time | 0.1 s–999 min |
| Interval Time | 0.1 s–999 min |
| Operating Modes | Continuous / Pulse / Intermittent |
| Display / Control | Touchscreen |
| Motorized Sample Lift | Yes |
| Temperature Monitoring | Yes |
| Temperature Alarm Setting | 0–99°C |
| Over-Temperature Alarm | Automatic alarm when the configured temperature limit is reached |
| Program / Recipe Memory | Yes |
| Overload Protection | Yes |

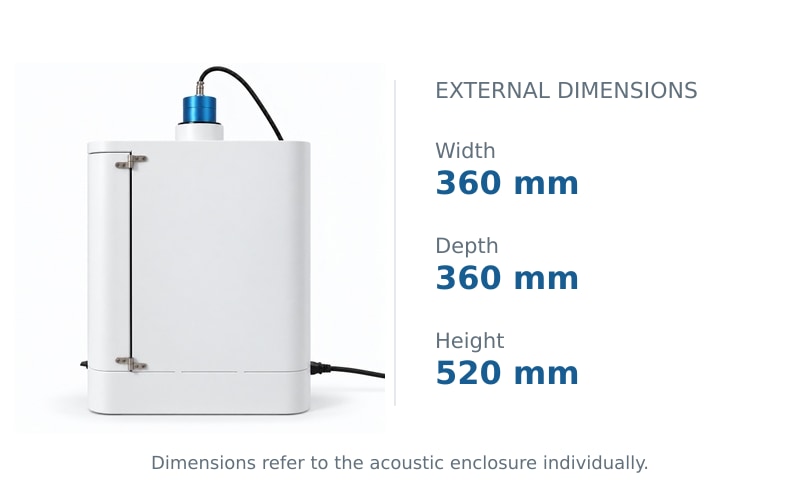

| Acoustic Enclosure External Dimensions | 360 × 360 × 520 mm |
| Acoustic Enclosure Internal Dimensions | 350 × 350 × 420 mm |

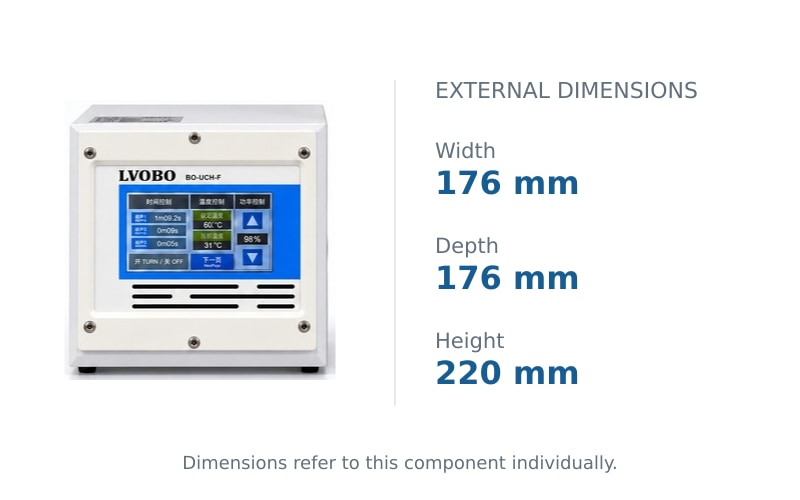

| Separate Control Unit Dimensions | 176 × 176 × 220 mm |
| Net Weight | 17 kg |
| Power Supply | AC 100–240 V, 50/60 Hz |
The 5–800 mL processing range requires a suitable probe configuration matched to the sample and vessel.

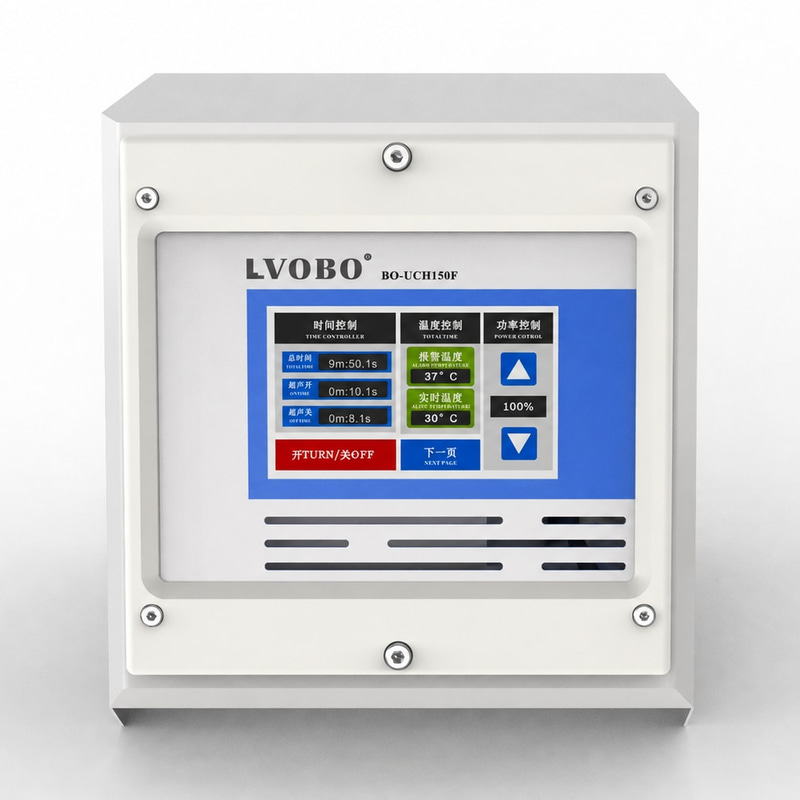

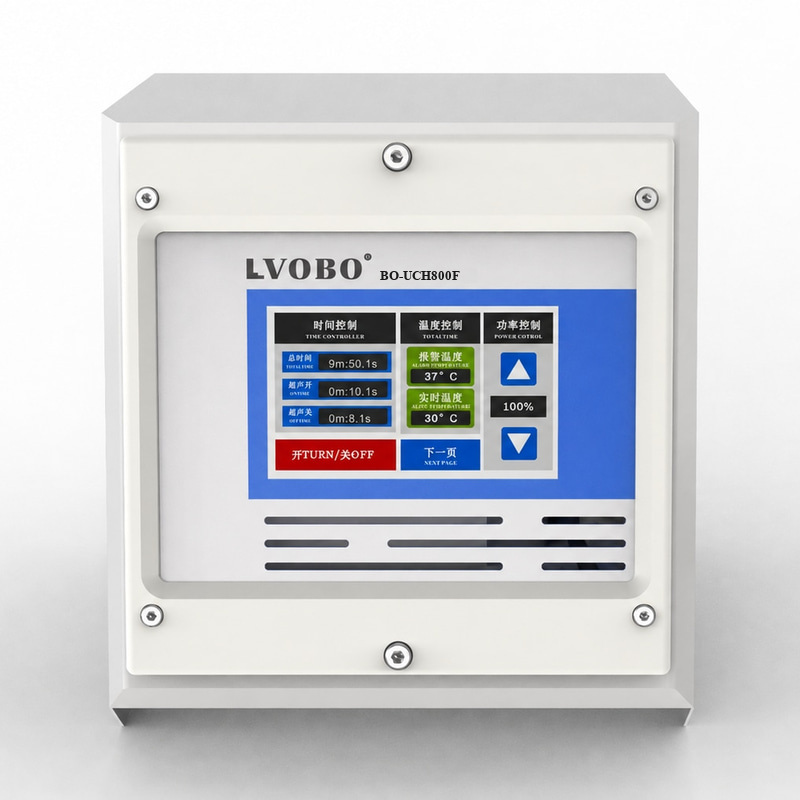

Set ultrasonic power, timing and operating parameters from the separate control unit.
Use continuous output or alternate sonication and pause periods with output and interval settings.

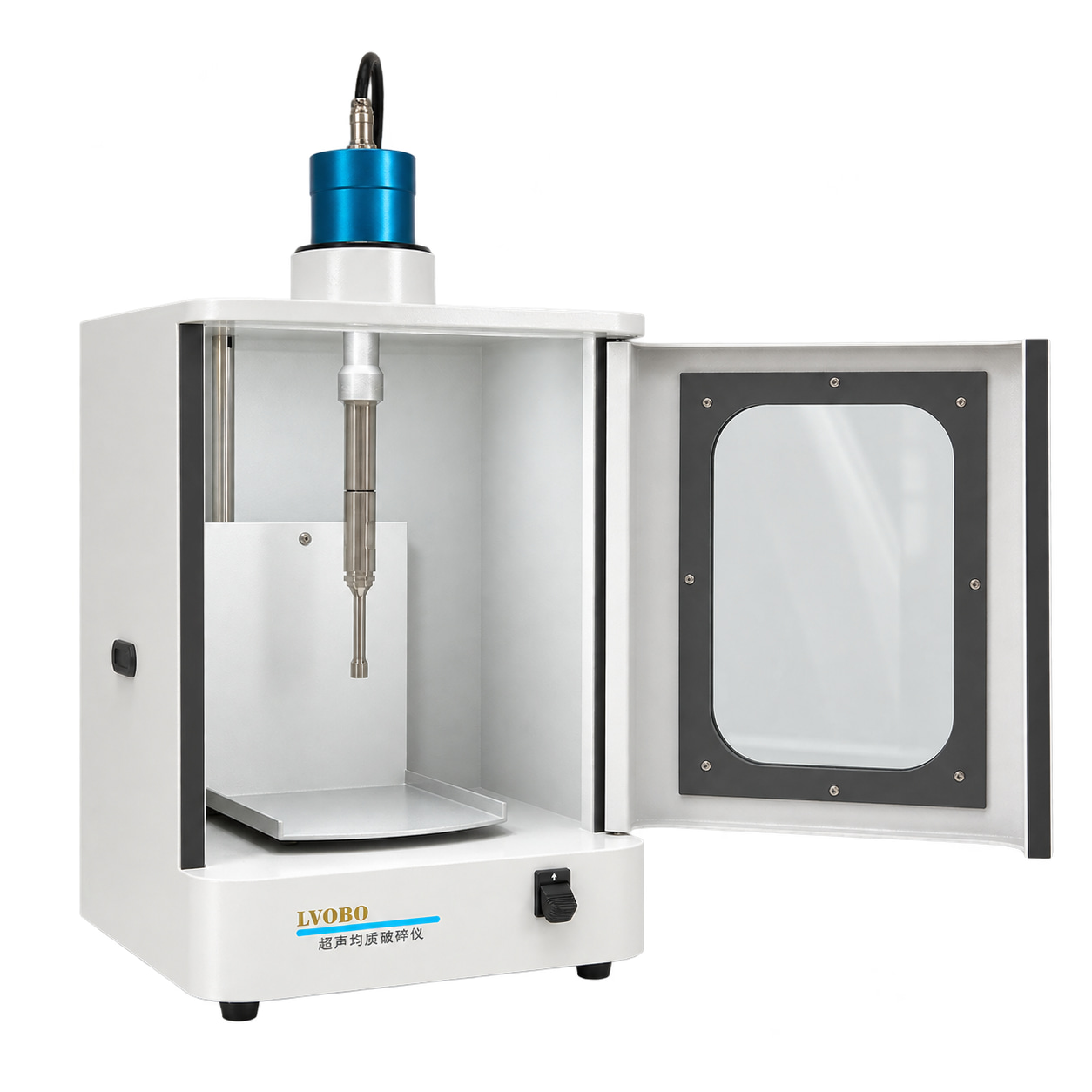

Electrically raise or lower the platform to position the vessel beneath the probe.
Monitor sample temperature and receive an automatic alarm when the configured temperature limit is reached.
Save and recall operating parameters for repeated laboratory procedures.
Includes overload protection for ultrasonic operation.
Laboratory sample preparation and liquid-phase ultrasonic processing tasks include:
These examples are not exhaustive. Suitability depends on the sample, vessel, processing conditions and selected probe.
The acoustic enclosure and control unit are separate components. Dimensions below refer to each component individually.
Dimension order: width × depth × height.
Other BO-UCH-F models are available for different ultrasonic power and processing-volume requirements.
Explore the BO-UCH-F Series →The processing range is 5–800 mL with a suitable probe configuration matched to the sample and vessel.
A Φ10 mm titanium alloy probe is supplied as standard.
Optional probe diameters are Φ3 / Φ6 / Φ8 / Φ10 / Φ12 / Φ16 mm.
Yes. It supports continuous, pulse and intermittent operation, with adjustable output and interval times.
Yes. Temperature Monitoring & Over-Temperature Alarm is provided. The alarm setting range is 0–99°C; an automatic alarm is triggered when the configured limit is reached.
Share your sample type, sample volume, vessel dimensions and intended application. LVOBO can help recommend a suitable probe configuration for your laboratory workflow.
