What is the core role that high voltage cascade plays in spray guns? And why is it indispensable for electrostatic spraying?

  In advanced manufacturing fields such as spray coating, metal spraying, and plasma spraying, the performance of spray gun equipment directly impacts both coating quality and production efficiency. Among these high-end spraying systems, there exists a seemingly unremarkable core component —— -the high-voltage cascade-that plays a crucial role.

So, what exactly is high voltage cascade and what role does it play in the spray gun?

  High-voltage cascading is a technical approach that connects multiple high-voltage modules in series to achieve higher voltage output. In spray gun equipment, particularly electrostatic or plasma spray guns, creating an intense electrostatic or ionized electric field at the nozzle is essential. This enables paint mist particles to become charged, allowing them to be adsorbed in specific directions or triggering material ionization effects.

  This stable high-voltage source is achieved through the built-in high-voltage cascade circuit in the spray gun. It can progressively boost primary voltages like 24V or 220V to tens of kilovolts or even hundreds of kilovolts, thereby providing sufficient power to charge the spray medium or excite plasma.

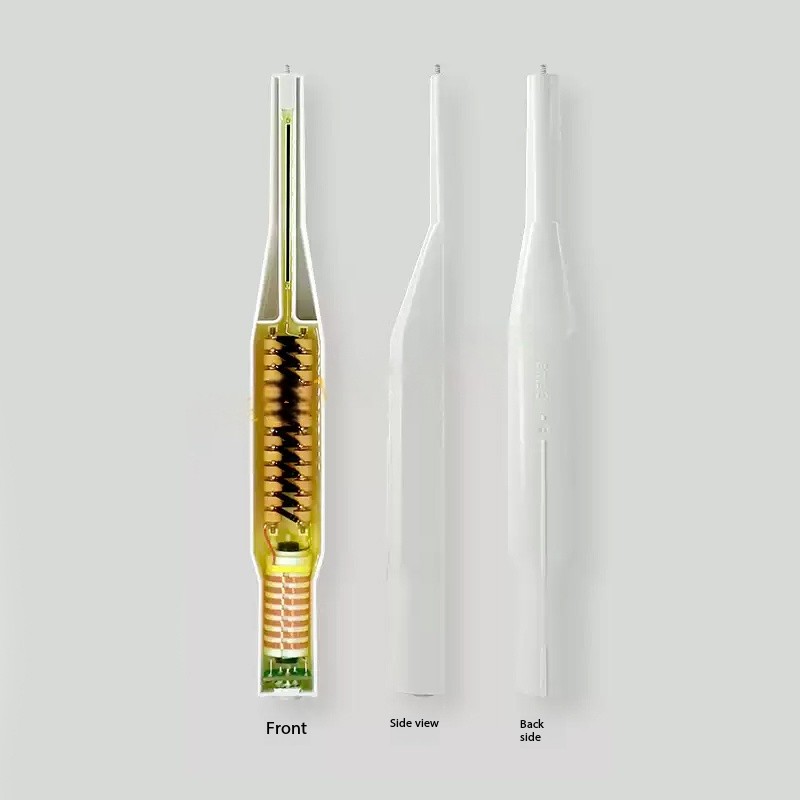

  The core structure of high voltage cascade —— the "voltage engine" in the spray gun

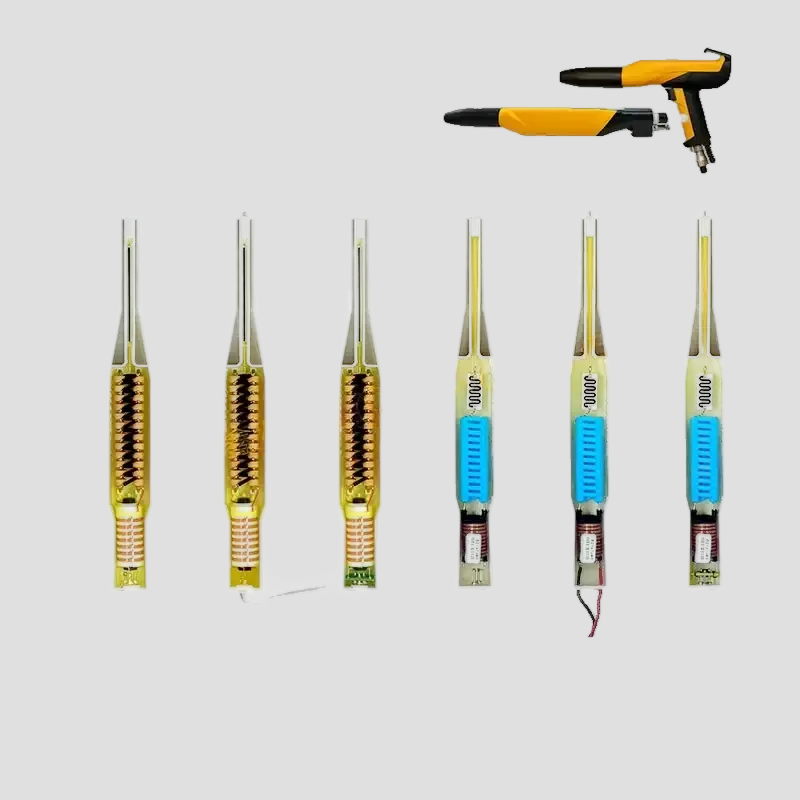

Inside the spray gun, the high pressure level system is generally composed of the following parts:

  The system begins with a high-frequency converter (HF inverter), which transforms low-voltage AC or DC power into high-frequency pulse electricity to facilitate subsequent voltage boosting operations. The multi-stage voltage boosting modules can each deliver thousands of volts per stage, typically encapsulated in epoxy resin for exceptional insulation. The Cockcroft-Walton cascade voltage multiplier achieves tens-of-kilovolt outputs through a network integrating capacitors, inductors, and diode rectifiers. Essential components like insulating casings and shielding layers ensure high-voltage leakage prevention, protect against electric shock risks, and minimize interference with other electronic components. These integrated modules are strategically positioned on spray gun handles or nozzle backsides – compact yet highly efficient designs that maximize operational effectiveness.

Why is high-level cascading so important? It is mainly reflected in the following five technical advantages:

  First, stable voltage output can ensure uniform coating. It should be noted that electrostatic spraying is extremely sensitive to voltage fluctuations, and high-voltage cascade module can stabilize the voltage, effectively avoid uneven coating thickness caused by uneven electric field intensity.

Second, the fast response speed is conducive to improving production efficiency. High frequency cascade has a short response time, which is suitable for continuous spraying and high-speed operation scenarios, and can meet the requirements of industrial automation production lines.

  Third, the high insulation strength can ensure the safe operation of the equipment. The module usually uses resin casting or vacuum packaging technology, with excellent voltage and insulation performance, even in high pressure environment, it can still operate safely and stably.

  Fourth, the adjustable voltage output can adapt to a variety of different scenarios. Depending on the use of different materials, spraying distance, environmental humidity and electrostatic sensitivity, the range of output voltage can be adjusted, such as between 20kV and 100kV.

  Fifth, the modular design is convenient for maintenance and replacement operations. Once the high-voltage module has a fault, only the corresponding module needs to be replaced, without stopping the whole equipment.

  The Complete Landscape of Applications: Electrostatic Spray Technology as Just One Component The applications of high-voltage electrostatic technology extend far beyond the coatings industry, finding widespread use in various spray applications. In automotive painting, when applying electrostatic coatings to vehicle exteriors and bumpers, cascaded modules maintain high-voltage fields of 75-90kV to ensure over 90% paint mist adhesion efficiency. For metal thermal spraying, plasma spray guns utilize cascaded high-voltage output to ionize gases like argon and nitrogen, creating plasma for titanium and zinc surface coating processes. In medical coating technology, bio-ceramic applications on medical stents and dentures require electrostatic adsorption without thermal damage. Similarly, high-precision PCBs and chip packaging casings rely on cascaded high-voltage technology for uniform insulation spraying.

  The performance of high-performance spray guns depends not only on nozzle design and airflow control, but also significantly on the high-voltage cascade module acting as the "voltage heart" at their core. This critical component determines electrostatic adhesion strength, ensures uniform coating consistency, and optimizes spraying efficiency. Looking ahead, breakthroughs in materials science, control systems, and microelectronics will propel this core technology to play a pivotal role in precision manufacturing applications, driving intelligent spraying toward long-term stability and sustainable development.
