Give Difficult Powder More Movement at the Mesh

Add a New Screening Variable Without Replacing the Complete Machine

Use a generator, transducer and dedicated frame selected around the equipment already in service.

The Screening Challenge

Give Difficult Powder More Movement at the Mesh

Fine particles may collect around apertures or form soft clusters under ordinary vibration. The system introduces high-frequency mechanical energy at the screening surface, providing another adjustment point when mesh buildup limits the process. Results depend on powder behavior, aperture, feed loading and the selected operating method; an application trial is recommended.

Operator Workflow

Set a Repeatable Run Cycle

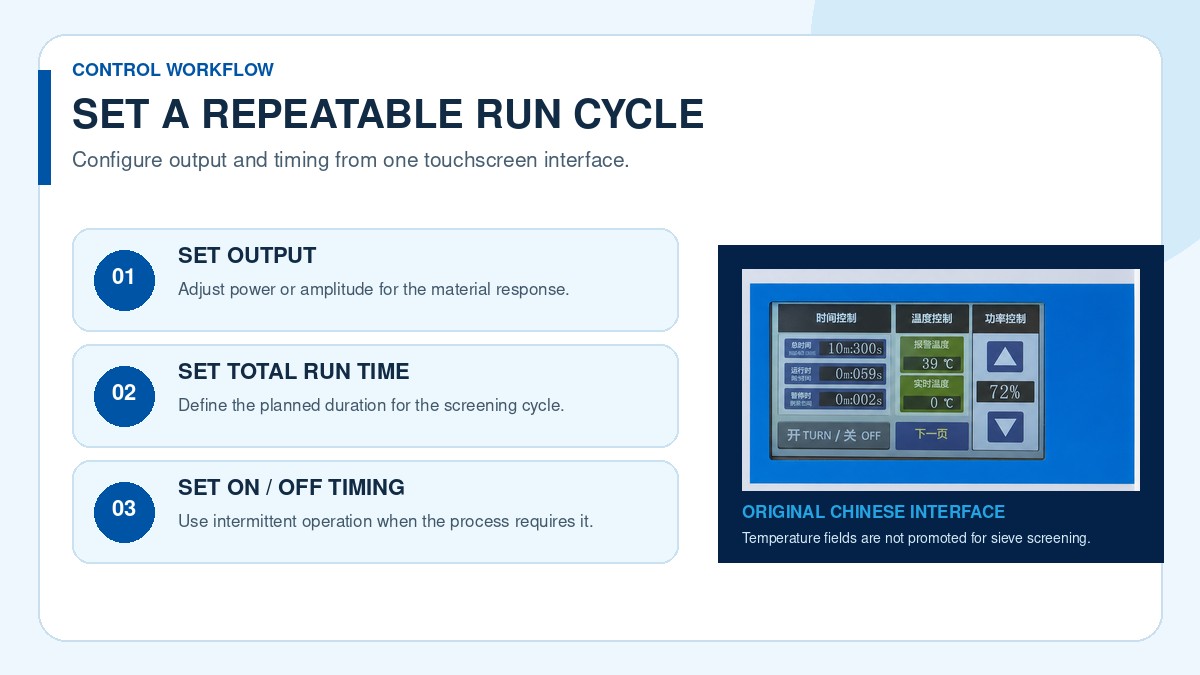

From the touchscreen, the operator can adjust the working level, define the total run time and set ON/OFF intervals. Continuous or intermittent operation can therefore be evaluated against the observed material response instead of relying on one fixed cycle.

System Logic

Follow the Energy Path to the Sieve Frame

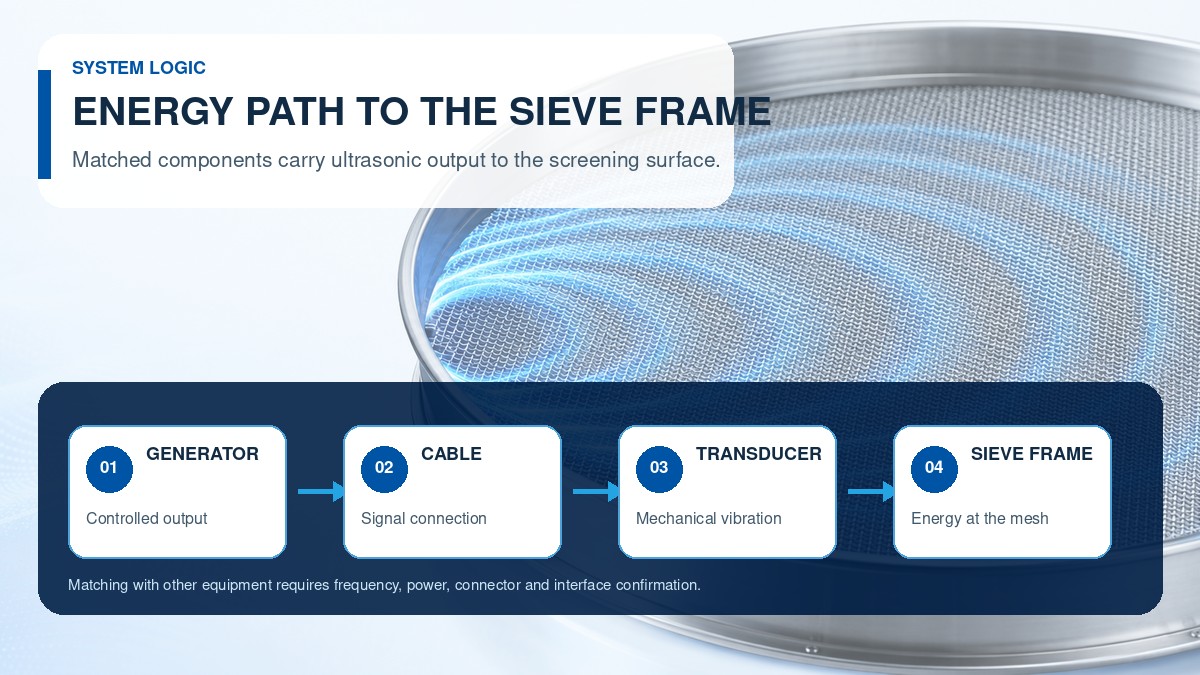

The generator supplies the controlled electrical signal, the cable carries it to the matched transducer, and the transducer converts it into mechanical vibration at the frame. When connecting to an existing machine, frequency, rated power, connector and mechanical interface must be reviewed together to avoid component mismatch.

Verified Technical Data

BO-CSZ300/200 Specifications

Order Matching

Check Four Inputs Before Production

Prepare the material name and target aperture, the required frame diameter, the destination voltage and the interface details of the current screener. Photographs and dimensions of the existing connection help the supplier assess whether the proposed configuration fits the installation.

Purchase Notes

What Is Included—and What Is Not

Discuss Your Screening Project

Contact LVBO for configuration support and commercial information.
