Intelligent Laboratory Test Sieve Shaker with Optional Ultrasonic System for Fine Powder Particle Size Analysis
The LVBO laboratory test sieve shaker combines forward rotation, reverse rotation and vertical vibration for repeatable particle size analysis. Touchscreen models support up to 21 programmable test procedures, helping laboratories standardize settings across materials, operators and test batches.
For cohesive, electrostatic or difficult fine powders, the optional 28 kHz ultrasonic system helps reduce mesh blinding, particle adhesion and agglomeration. Available with 200 mm or 300 mm stainless-steel test sieves, 110 V or 220 V power and destination-compatible plugs.
Số mục :
BO-200SYĐặt hàng (MOQ) :
1Giá :
$294Nguồn gốc sản phẩm :
ChinaMàu sắc :
whiteCảng vận chuyển :
Xia MenThời gian dẫn :
7daysCân nặng :
9.15KgSự chi trả :
T/TRepeatable powder grading for new materials, research laboratories and quality-control departments.
|
Product Overview
One Platform for Routine Sieving and Difficult Fine PowdersThe LVBO test sieve shaker combines clockwise rotation, counterclockwise rotation and vertical vibration to distribute samples efficiently across the mesh. The optional ultrasonic configuration is intended for powders that blind fine mesh because of static electricity, adhesion, low density or irregular particle shape. |
 |

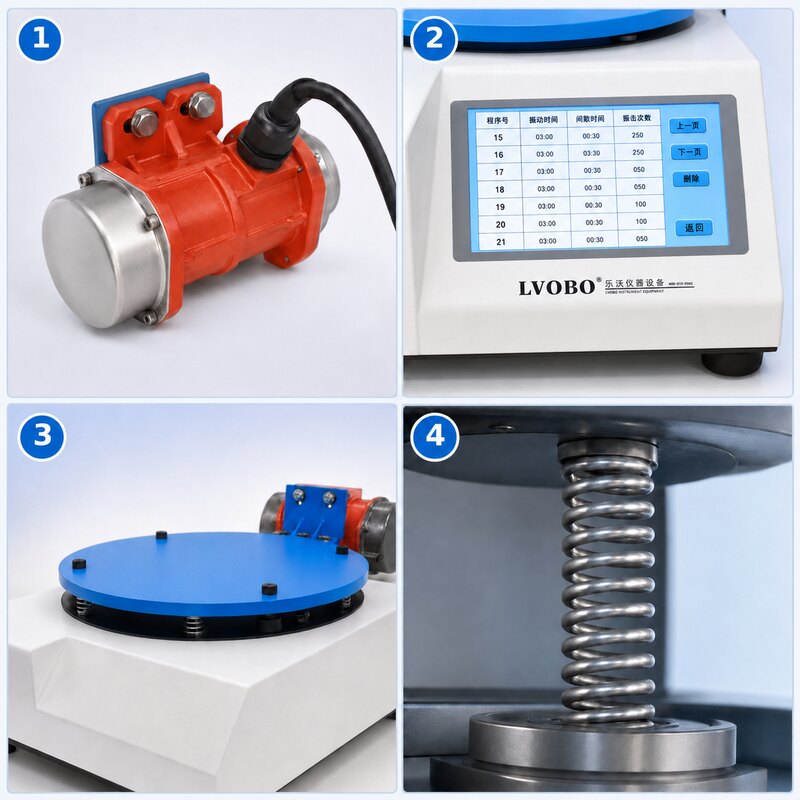

| 01 · External Vibration MotorRed metal housing, secure mounting bolts, metal end covers and copper windings support stable excitation and convenient maintenance. | 02 · 21 Programmable ProceduresSave and recall operating parameters for different samples without rebuilding each procedure manually. |
| 03 · Thickened Blue TrayThe rigid circular tray and multiple fixing points provide firm support for the stainless-steel sieve stack. | 04 · Tool-Steel SpringsSupport springs transfer vibration to the tray while helping isolate unnecessary movement from the machine body. |
The combined motion spreads the sample across the sieve surface and promotes repeated particle contact with the mesh. The actual motion is stated directly instead of making an unsupported full three-dimensional-trajectory claim.
 |
Optional Configuration

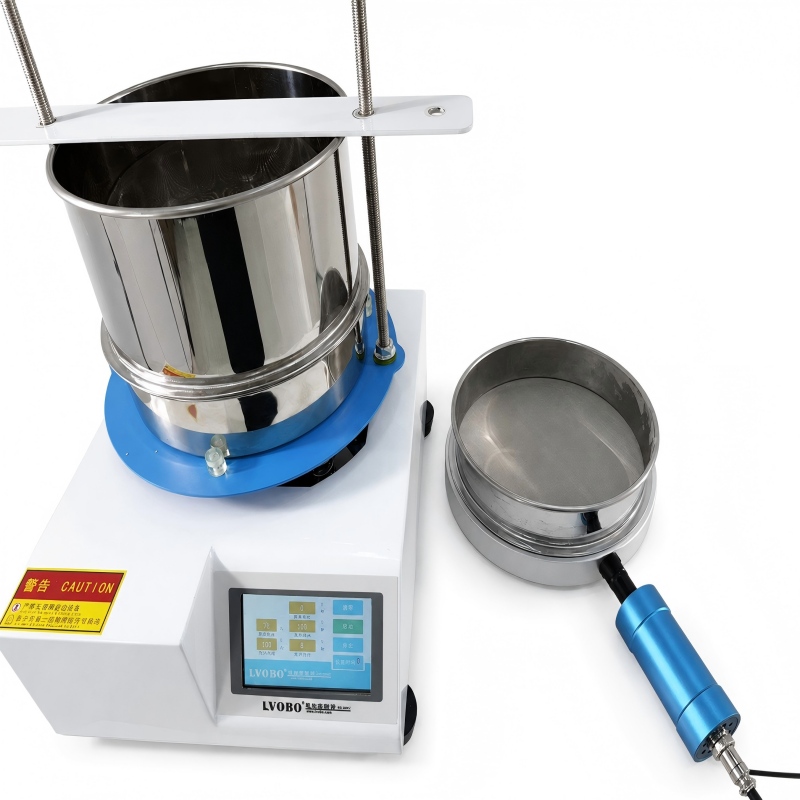

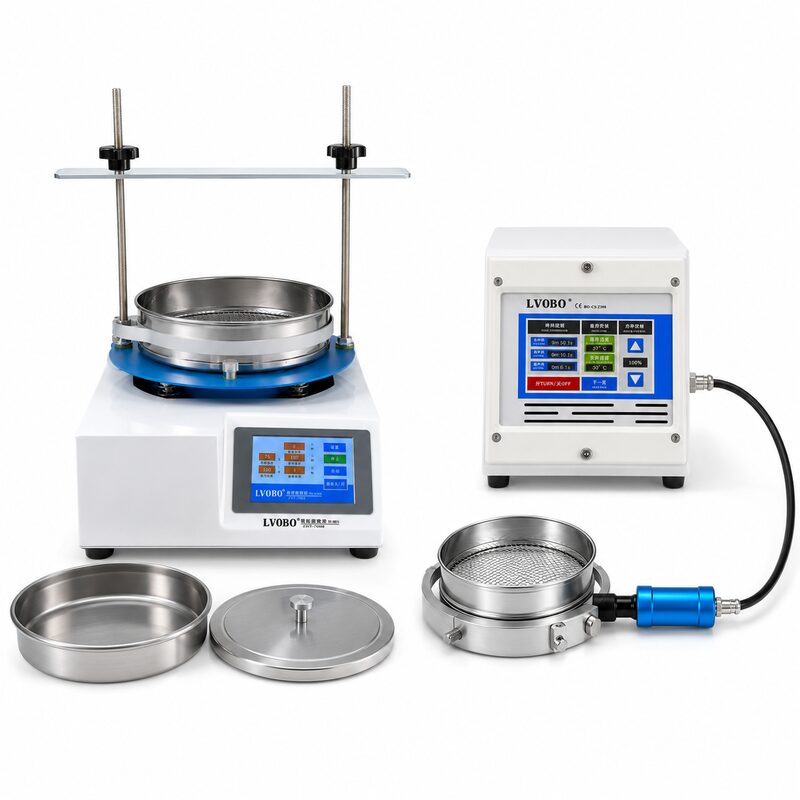

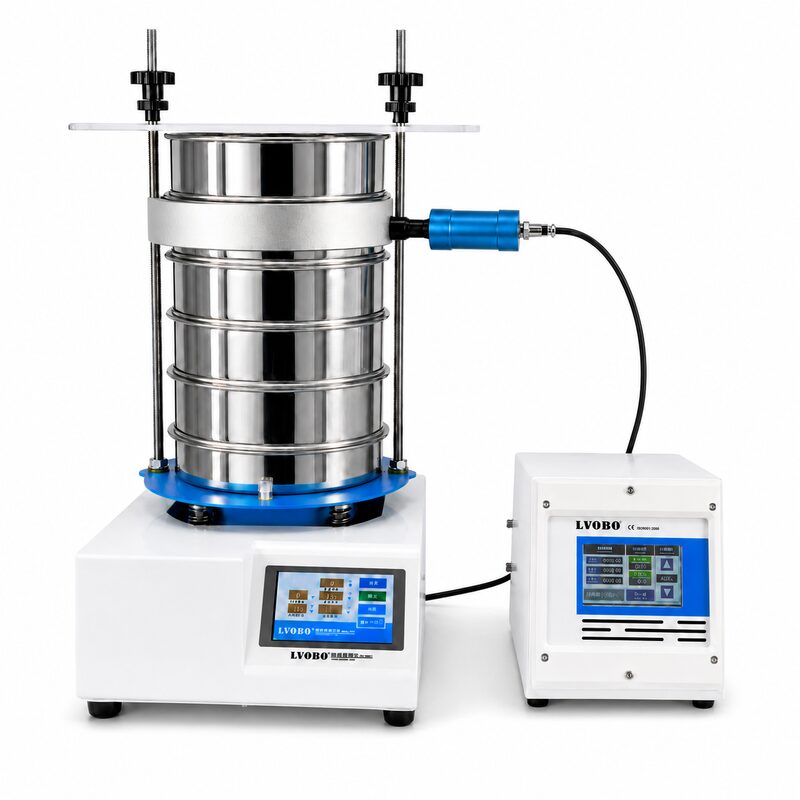

28 kHz Ultrasonic Anti-Blinding System
|
| Metal Powder Additive manufacturing and powder metallurgy |
Battery Materials Cathode and anode powder research |
Advanced Ceramics Alumina, zirconia and silicon carbide |
| Fine Chemicals Pigments, catalysts and additives |
Pharma & Food QC Dry powder and granule testing |
University Research Materials science and formulation studies |
| Parameter | Available Specification |
|---|---|
| Models | BO-200SY / BO-300SY and configured variants |
| Control | Touchscreen or button control |
| Programs | Up to 21 on touchscreen models |
| Sieve Diameter | 200 mm or 300 mm |
| Motion | Forward rotation, reverse rotation and vertical vibration |
| Rotation Speed | 900–1400 rpm, subject to configuration |

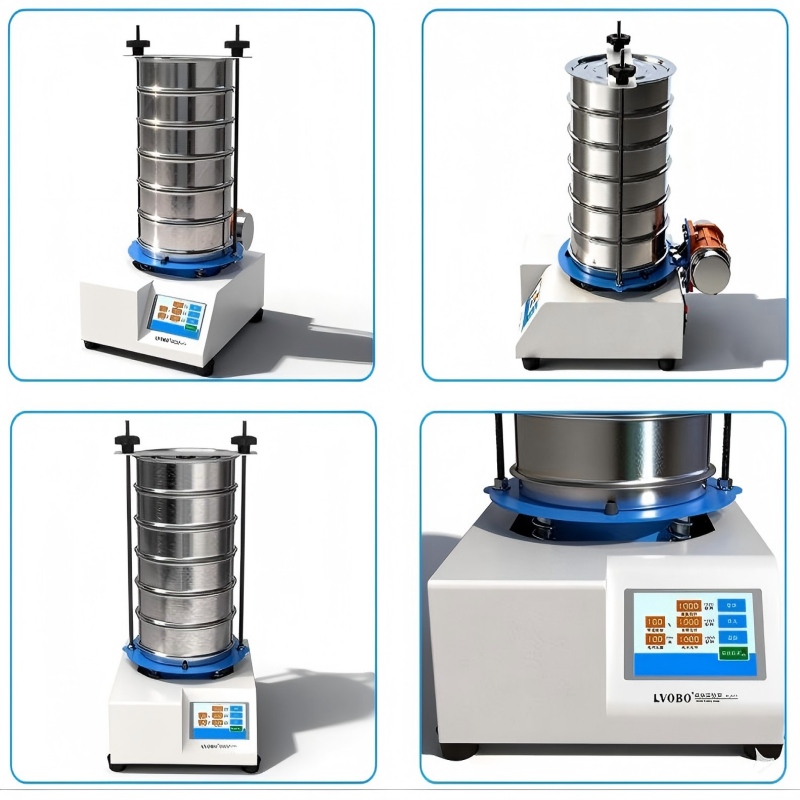

| Sieve Stack | Up to 8 layers depending on sieve height and fixing rods |
| Mesh Options | 8–2000 mesh; final selection depends on material and test standard |
| Power Supply | 110 V or 220 V; US / EU / UK / AU plug |
| Ultrasonic Option | BO-CSZ200 / BO-CSZ300, 28 kHz |
| Configuration | Net Weight | Packed Weight |
|---|---|---|
| BO-200SY Touchscreen | Approx. 7.65 kg | Approx. 9.15 kg |
| BO-300SY Touchscreen | Approx. 14.25 kg | Approx. 15.75 kg |
| BO-200/300SY Button Control | Approx. 14.90 kg | Approx. 16.40 kg |
Button-Control Shaker: routine coarse powder and granule screening.
Touchscreen Shaker: repeatable testing for multiple materials and operators.
Touchscreen + Ultrasonic: cohesive, electrostatic, low-density or difficult fine powders.
Send us your material, target mesh, sample quantity, voltage and destination country. We will recommend the appropriate shaker, sieve diameter and ultrasonic configuration.
Programmable Laboratory Test Sieve Shaker with Optional Ultrasonic System The LVBO laboratory test sieve shaker combines forward rotation, reverse rotation and vertical vibration for repeatable particle size analysis. Touchscreen models support up to 21 programmable test procedures, helping laboratories standardize settings across materials, operators and test batches. For cohesive, electrostatic or difficult fine powders, the optional 28 kHz ultrasonic system helps reduce mesh blinding, particle adhesion and agglomeration. Available with 200 mm or 300 mm stainless-steel test sieves, 110 V or 220 V power and destination-compatible plugs. Recommended for: metal powder, lithium battery materials, advanced ceramics, fine chemicals, pharmaceutical or food quality control and university materials research.
Chi tiết
The experimental screening machine is a device used for screening, separating and classifying samples in alaboratory environment. It is widely used in chemistry, biology, medicine, food science and other fields, helpingresearchers to quickly and accurately separate samples with different particle sizes and characteristics.
